Automatic Gate Opener

This is probably the best thing we have done to our property since moving here several years ago.

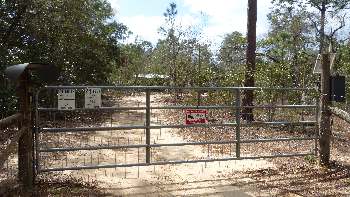

Front gate= Security;  Automatic gate opener= Convenience

Installed an automatic gate opener!

It opens and closes by using a remote/clicker, a keypad at the gate or by pushing a button inside the house. You do not have to get out of the car to open the gate.  :)

An exit sensor wand buried in the driveway lets cars out automatically, so visitors can leave without any action by you.

With Comelit color monitor we can see who's at the gate!

The best part:

We have a color monitor inside the house through which we can view the entire gate entry area, see and talk back-and-forth to visitors.

Best of all, you can open and close the gate from the inside monitor console, without even getting out of your chair! [You can see it in action in the video below].

Was all this security really necessary?

A locked gate stopped all the riff-raff from wandering onto the place.

We own 3 acres of land inside the boundaries of a major national forest. People love this forest, and it draws visitors year-round.

Problem is, they don't realize there is some private property inside the forest. So we had curious hikers, four-wheelers, dirt bikes and even jeeps and pickup trucks enter the property, just to take a look around. Day and night!

We figured they thought since they were in the forest, it was all national property, and so anything, including our property, was fair game.

But we got tired of chasing these uninvited guests off. Not to mention which, this was just an unsafe and unsecure situation.

Enter our Estate Swing Gate Opener. This thing is really cool, and totally secures our homestead.

The entire package ran us about $1,000, but that included all the bells and whistles of a full-service, remotely monitored and operated gate.

And worth every penny!

Automatic Gate Opener
The Equipment

The Estate Swing Automatic Gate Opener

(And things we learned the hard way)

12v DC power with solar recharging is best for a rural farm gate.See the solar panel?

Tip #1: If you decide to install one of these babies, get the battery-powered gate with solar trickle, not the electric powered.

Our gate opens and closes fine during power outages, which happen frequently here. Gate runs on a marine battery, so it keeps on truckin', no matter what.

Tip #2: Hardwire the monitor to the house; do not go wireless. No matter what range they say the wireless model has (300 meters).

Our gate is only a hundred feet from the house; and the wireless model did not reach. So we had to send it back and get the hard-wired model. Then we bought underground-grade electric wire and started digging a shallow trench to bury it in. This has worked fine for us.

Tip #3: Get all the bells and whistles, including:

  • Estate Swing Single Heavy Duty Solar Gate Opener [ES 1000H]
  • 15 Watt Solar Panel [SA-15M]
  • Keypad entry
  • Comelit Indoor Color Monitor [HFX700M](warning: not the 700D or 700H)
  • Automatic Gate lock [GLOCK]
  • Gate reinforcement Brackets (pair) [GP161229]
  • Exit sensor wand [CS-200-S100]
  • Party mode push button [GC101]
  • Clickers (remotes) for each car + 2 extra for emergency opening from anywhere on property [T18-ES]. One comes with the kit.

*We supplied a 12v Deep Cycle Group 24 Marine Battery, bought locally.

My advice for getting the best pricing is as follows:

Get your equipment from 3 different suppliers: Gatecrafters, Surveillance-Video and Amazon.

#1: Order These From Gatecrafters:

1- Estate Swing Single Heavy Duty Solar Package Gate Opener [ES 1000H] Do not order a solar panel with your package; you can do much better, pricewise.
1- Gate Reinforcement Brackets (pair) [GP161229]; Optional, only needed if you are using a tubular farm gate.
1- Party Mode Button; Optional [11TS15-2]
1- Keypad, 433 MHz Wireless, Optional
X- Remotes [T18-ES] Order however many you want; one comes with the ES Package.

If you order the main ES 1000H kit from Gatecrafters ($65 cheaper than other supplier, and free shipping), this also gives you access to phone tech support at Gatecrafters (which we found was very good, and it was great to have someone talk you through minor problems; mostly tweaking the settings).

Click on each item below to order (we get no commission).

Order this from, save $60 there:

1- HFX-700M Comelit monitor

And then order these items from Amazon, we have provided direct affiliate links below for your convenience:

1- Exit Sensor [CS-200-S100]
1- Automatic Gate lock [GLOCK]
1- 15 watt solar panel for 12V Battery

Here's a short video showing our Estate Swing Automatic Gate Opener in action:

Automatic Gate Opener
Installation Tips

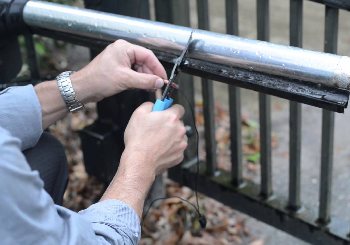

Take your time and follow directions exactly when installing an automatic gate opener.

Automatic Gate Opener

Installation was a little tricky. We needed the optional gate reinforcement brackets because we were installing a "hollow tube" farm gate. So reinforcement was needed where the opener fastened to the gate.

Take your time with cutting and positioning the gate bracket "boomerang". Carefully follow directions for wiring this device up. Take pictures and/or make diagrams of where all the wires go for future use.

Setup and operating parameters take a little tweaking, but we got them where we want them now. Ie: how long the gate should stand open before re-closing.

We felt the optional gate lock was essential. It securely holds the gate closed in a mechanical grip (intruder can not push the gate open).

Exit sensor wand (buried in driveway) detects any large metal object passing by (car, 4-wheeler) and opens gate automatically to allow them to exit.

Party mode button holds the gate open until released, for events where lots of cars will be coming and going.

TIP: If you live in a subdivision or gated community, check with homeowner rules first. Also, contact your county building department to see if a permit is needed to install one of these.

TIP: If it's just beyond your skills, Gatecrafters can help you find a local installer.

Automatic Gate Opener
About Lightning

Lightning can destroy a gate opener.

When we first decided to install an automatic gate opener, several friends and neighbors advised us not to do it, because automatic gates are prone to lightning damage. In fact, they even went so far as to call the gate a "lightning magnet".

Well, it turns out they were right, it really is a lightning magnet.

But there are some things you can do to deal with that:

1. Install a lightning rod per these instructions.

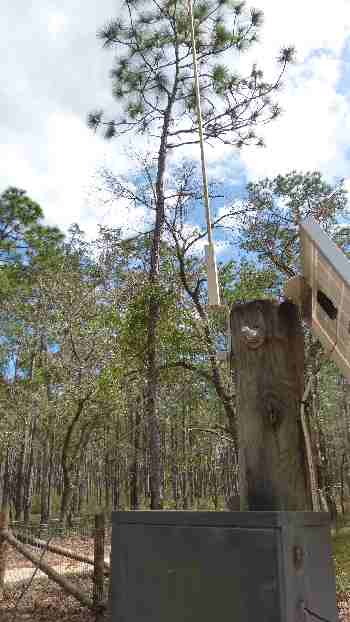

A lighting rod is meant to attract lightning and divert it around the structure into the ground.

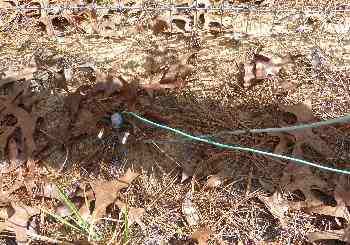

This is the top of the long copper ground rod pounded into the ground.

2. Install a surge suppressor inside the battery box at the gate. This is the model number: DTK-4LVLP-CR. You can find one here.

3. Install a line disconnect to the inside monitor.

Once we installed the lightning rod and surge suppressor as in #1 and #2, lightning strikes never hurt the equipment out at the gate. But a good strike still snaked it's way up the connecting wire and fried the inside monitor and/or the monitor's power cord.

Each new inside monitor costs over $200. The power cords ran $18 apiece. After replacing the power cord 4 times and the monitor 3 times, we came up with this solution:

Quick disconnect solved the problem.

Scott installed a quick-disconnect in the line, right before the monitor. We just unplug the line from the monitor during lightning storms. A bit of a pain, perhaps, but it has prevented any more fried monitors ever since we did it.
